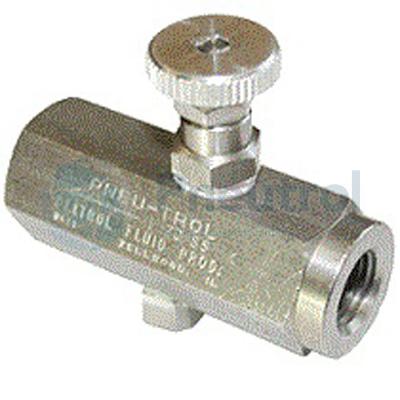

Deltrol F20SSK – 1/4″ NPTF, S/S Body, Max PSI 5000 (345 Bar), With Knob, Variable Flow Restrictor With Free Reverse Flow

Part Number: F20SSK

  • Price Each:

    (exc. VAT)
    £134.97

    • This item is currently out of stock, awaiting replenishment. Please contact us for a lead time.

Enquire about this product:
Contact Form Demo (#3)

Description

Pneu-trol model F20SSK is a Variable Flow Restrictor with Positive Shut-Off and Free Reverse Flow A wide range of flow adjustment in the controlled flow direction is possible because of the fine thread and tapered needle. A spring biased ball check or optional poppet check allows full flow in the opposite direction. Unwanted changes in adjustment are prevented by a lock nut.

Part number: 10000-26

Pneu-trol Part Reference: F20SSK

Features and benefits Include:

  • A wide range of flow adjustability.
  • Lock nut to maintain flow setting.
  • Positive shut-off.
  • Leak-Tight Ball check standard.
  • Bubble-Tight poppet with O-ring optional.

Additional information

Weight 0.3 kg
Body

Carbon Steel
Port Connection

NPT 1/4
Maximum Pressure (PSI)

5000
Maximum Pressure (Bar)

345
